Sonatex Laminate Finishes

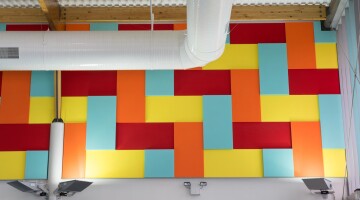

  • Otathuhu Recreational Centre - coloured Sonatex wall panels
    Otathuhu Recreational Centre - coloured Sonatex wall panels
  • Steel & Tube HQ showing white Sonaris with S4 slot perforation pattern ceiling tiles installed into a suspended light raft above the reception area
    Steel & Tube HQ - Sonatex with S4-500, white/white
  • Auckland National Archive Library - Sonatex S4-500, grey/grey
    Auckland National Archive Library - Sonatex S4-500, grey/grey
  • Orewa Medical Centre - Sonatex FP-500, white/white
    Orewa Medical Centre - Sonatex FP-500, white/white

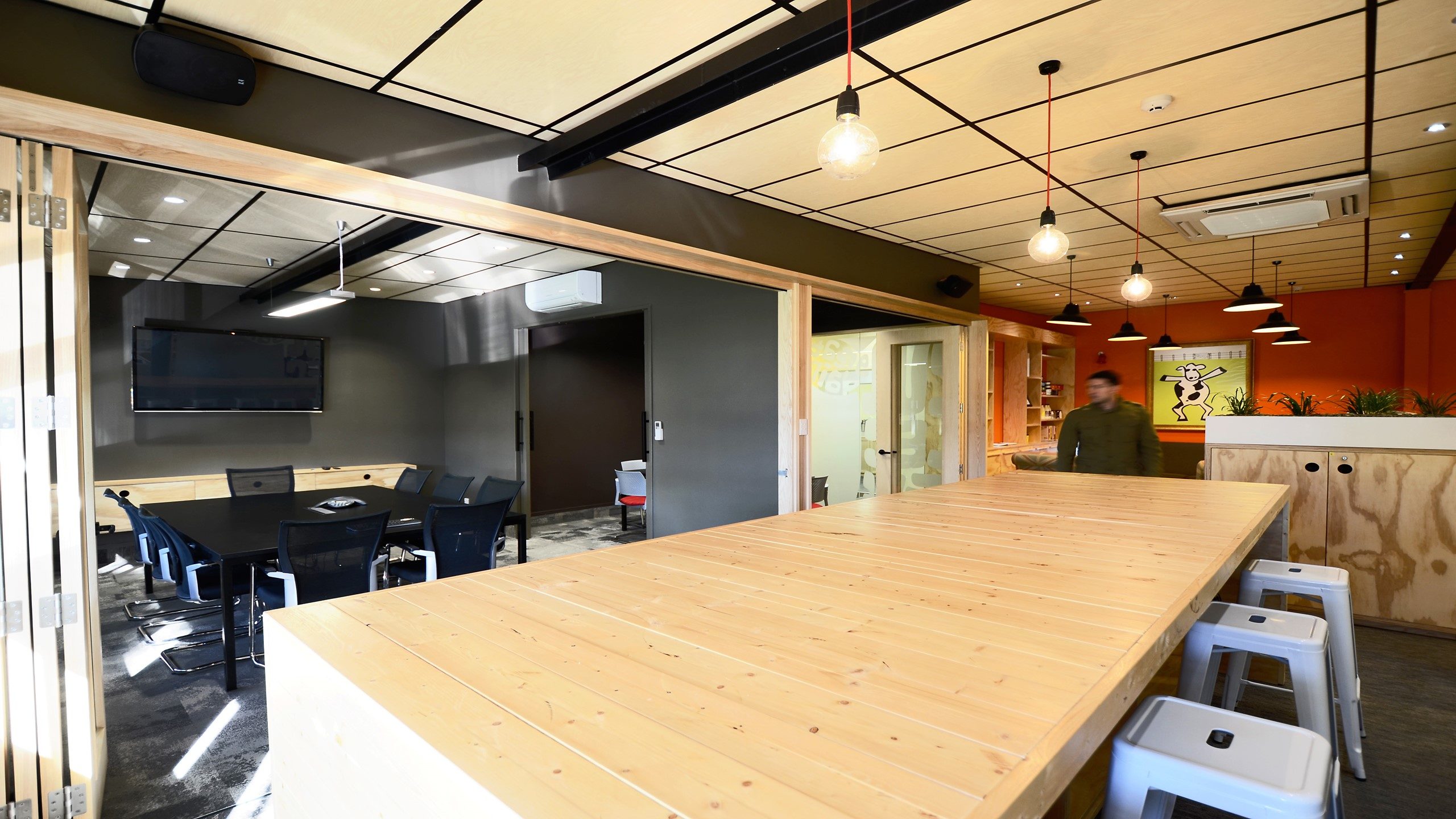

  • The Collective Dairy - Wood Grain Sonatex
    The Collective Dairy - Wood Grain Sonatex
  • Devonport Library - Sonatex P55, white/white
    Devonport Library - Sonatex P55, white/white

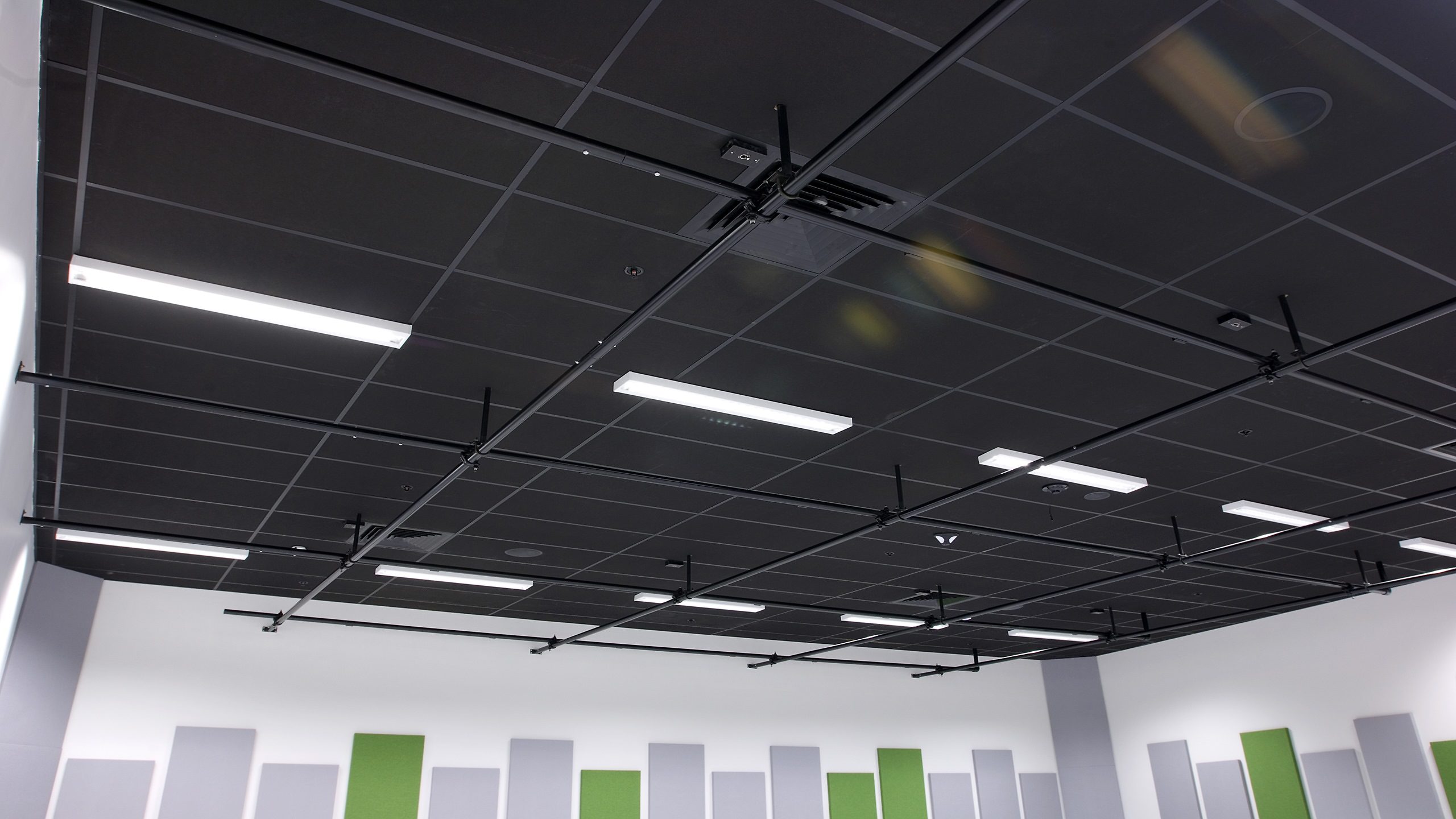

  • Hobsonville Point Music Room - Black Sonatex on Avant 25TB
    Hobsonville Point Music Room - Black Sonatex on Avant 25TB

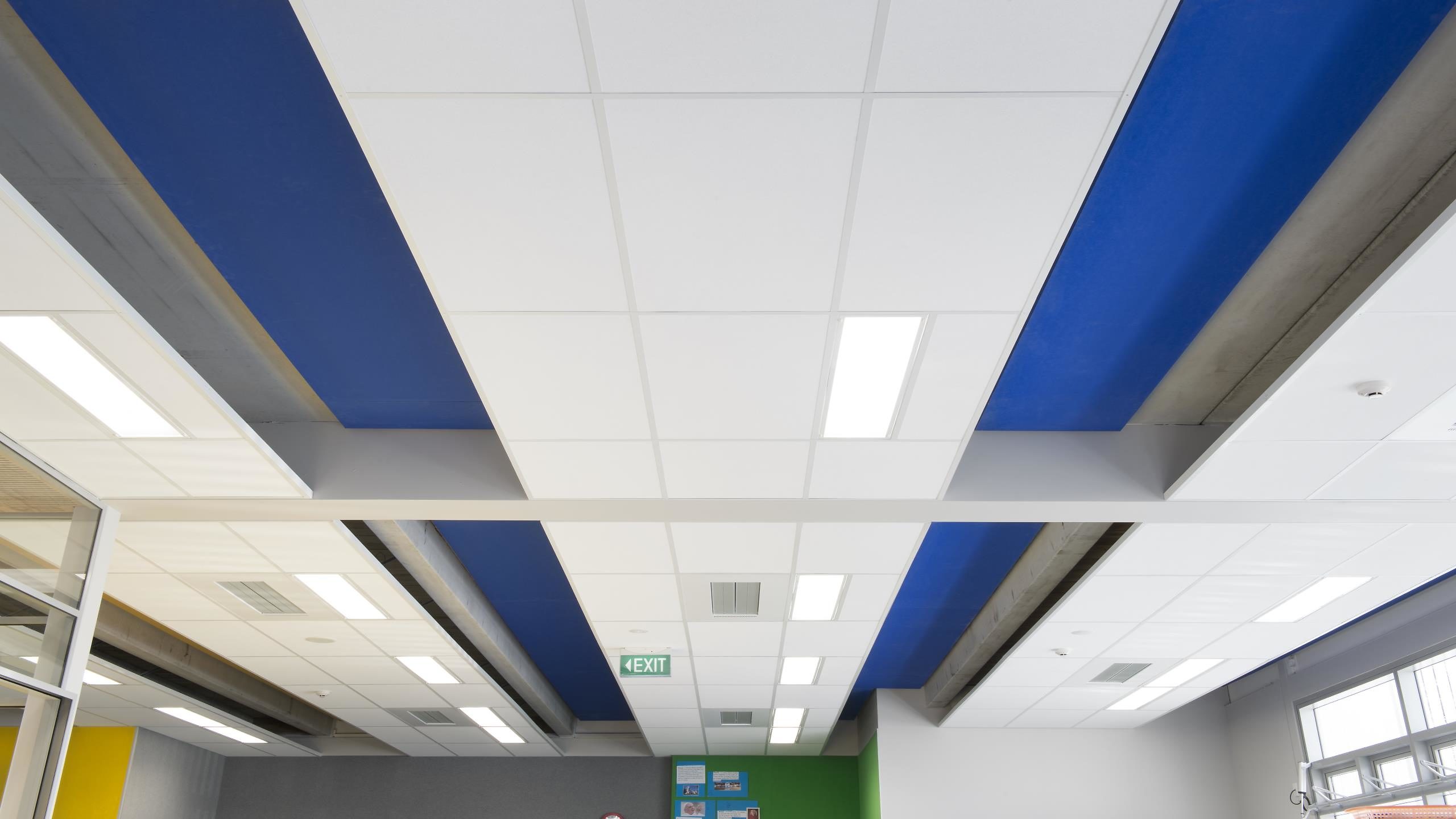

  • St Josephs School - Triton 50 with Blue Sonatex
    St Josephs School - Triton 50 with Blue Sonatex
Sonatex Laminate Finishes

Sonatex™ a revolutionary glass mat laminate finish for ceilings. Sonatex™ is designed to provide a decorative acoustically transparent laminate finish to a broad range of ceiling materials such as polyester, mineral fibre, glass fibre board, rockwool, and plasterboard. Panels can be provided at NRC 0.1 to 1.00 and CAC from 15 to 45dB. Sonatex™ provides a flat durable finish and is available in 3 whites, RAL colours, prints and perforated designs to order. Sonatex™ is manufactured in New Zealand, is light weight, non combustible, low in embodied energy, low VOC, easily customized and economical.

Application

Sonatex™ is ideal as a decorative finish to acoustic ceiling panels in corporate office areas, lobbies, retail, halls, education facilities, entertainment and institutional buildings.

These finishes are designed for Asona's Triton and Triton Cloud ranges of high sound absorbing glass fibre ceiling panels.

Composition
Sonatex™ is made in New Zealand from glass mat composite sheets bonded together then laminated onto a variety of acoustic base materials.

Benefits

Provides an attractive perforated aesthetic to various acoustical base board ceiling panels.
Available in a standard range of perforated designs, custom sizes and special perforation designs available to order.
Global GreenTag Certified when used with the Triton Range.
Standard range of colours, custom RAL colours available to order.
Acoustically transparent, can be tuned to provide high sound absorption up to NRC 1.00 and STC to 29dB.
Non combustible glass fibre composition, Fire Rating Group 1S
Prefinished, light weight & dimensionally stable.
Semi-translucent, diffuses light when used in a AO-Gami feature.

Technical Drawings

Finishes

Sonatex Perforation Patterns
Sonatex Colour Range
