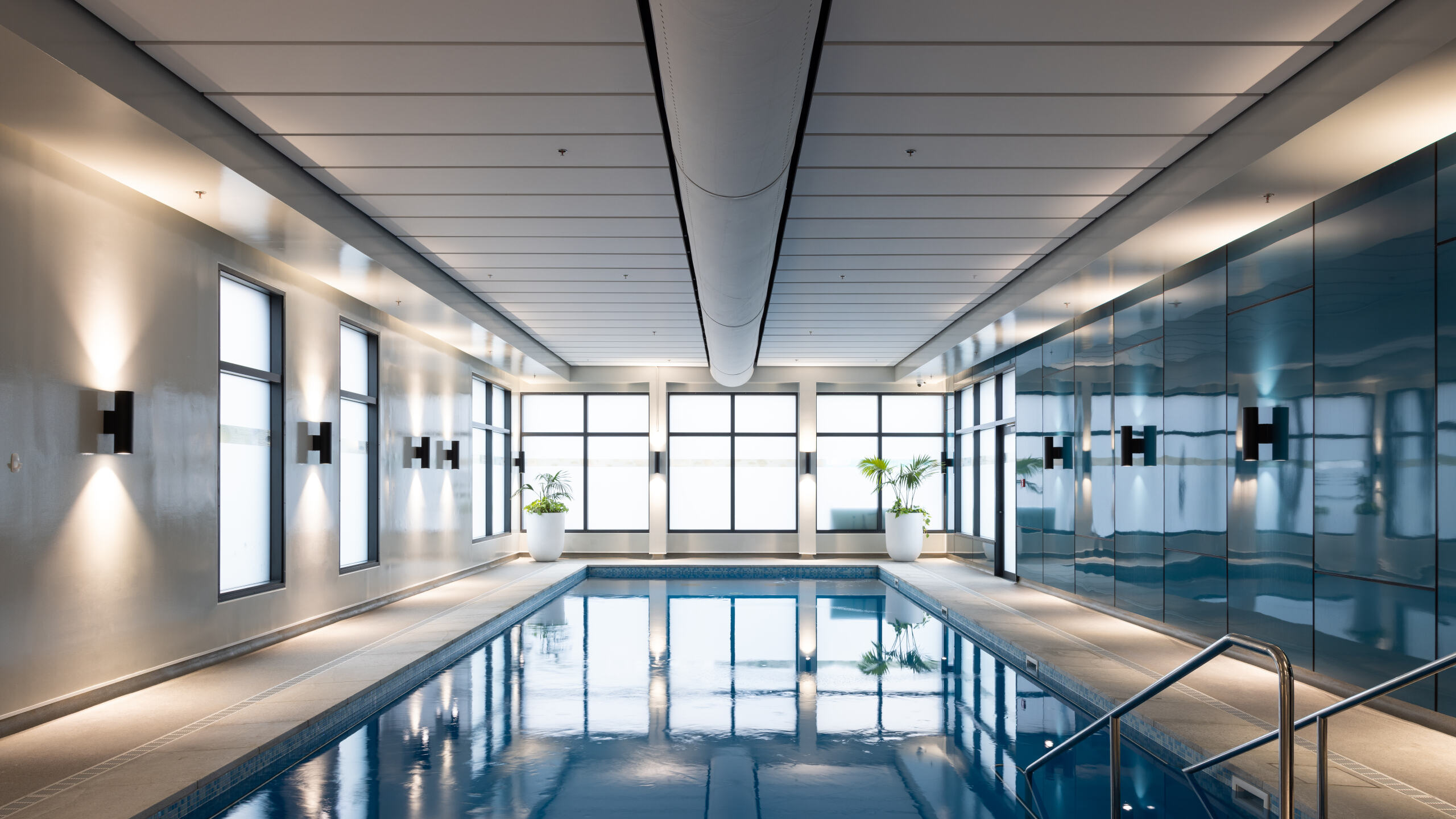

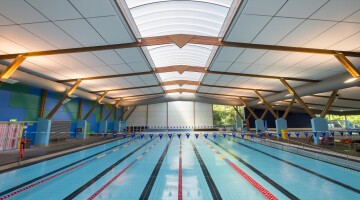

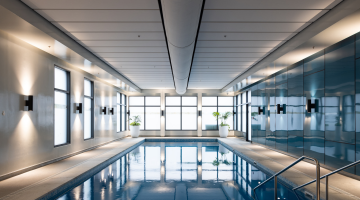

    Asona Triton Pool Panel™

    Triton Pool Panel™ is a proprietary high sound absorbing acoustic panel designed specifically for swimming pool ceilings and high-up wall applications. The panels have an acoustic core with a concealed aluminum frame and is faced & edge wrapped in Sonatex™ glass mat composite finish which has been treated with a silicone water repellent spray. The panels are also foil membrane backed for resistance against condensation and moisture.

    Application:
    Recreation
    Education
    Commercial
    Form:
    Panel
    Fire Group:
    Group 1-S
    NRC Sound Absorption:
    1.0
    Size:
    Thickness: 50mm
    Width: 600, 900, 1000, 1200mm
    Length: 600, 900, 1000, 1200, 2000, 2400, 2700, 3000mm
    Made in NZ
    Greentag
    Short Lead Time
    Colour / Finish
    Request Info/Spec Request Sample
    Description
    Specifications
    Downloads

    Triton Pool Panel™ panel is designed as a free-floating acoustic ceiling panel or as a direct fixed ceiling & wall panel. Specifically designed for swimming pools and other moisture laden environments.

    50 mm thick glass fibre core provides very high sound absorption, NRC 1.00, ISO 11654, αW 1.0.
    Clean, crisp, frameless look with wrapped edges.
    High light reflectance in standard white, colours available.
    Large modules available up to 1200 mm x 3000 mm.
    Concealed aluminium frames for strength.
    Dimensionally stable in high humidity.
    Designed specifically for swimming pool environments
    Water repellent surface
    Application:
    Recreation
    Education
    Commercial
    Form:
    Panel
    Fire Group:
    Group 1-S
    NRC Sound Absorption:
    1.0
    Size:
    Thickness: 50mm
    Width: 600, 900, 1000, 1200mm
    Length: 600, 900, 1000, 1200, 2000, 2400, 2700, 3000mm

    Composition

    Manufactured in NZ, from bio-soluble 85% recycled glass fibre core with aluminum reinforced edges and wrapped in 2 ply Sonatex™ glass mat composite finish which has been sprayed with silicone water repellent. Panels are foil membrane backed for resistance against condensation and moisture.

    Acoustical treatment shall be Triton Pool™ panel from a glass fibre core, concealed aluminium frame with reinforced edges, wrapped in Sonatex glass mat laminate with water repellent coating to face and edges, metalized polyester foil backing, as manufactured by Asona Ltd tel: 09 525 6575, item # (_), module (_) x (_)mm x 50mm thick, sound absorption Class A, αW 1.0, NRC 1.00, Fire Group: 1-S, colour (white) (other). Mount panels to structure via proprietary (anodized) (powder coated) aluminium 50mm direct-fix Z brackets (other). Contractor shall register the ceiling with Asona on practical completion. (Asona ceiling Masterspec 5172AA specification available.)

    Technical Datasheets

    Triton Pool Panel™
    Installation Guides

    Triton Pool Panel™ Installation Manual
