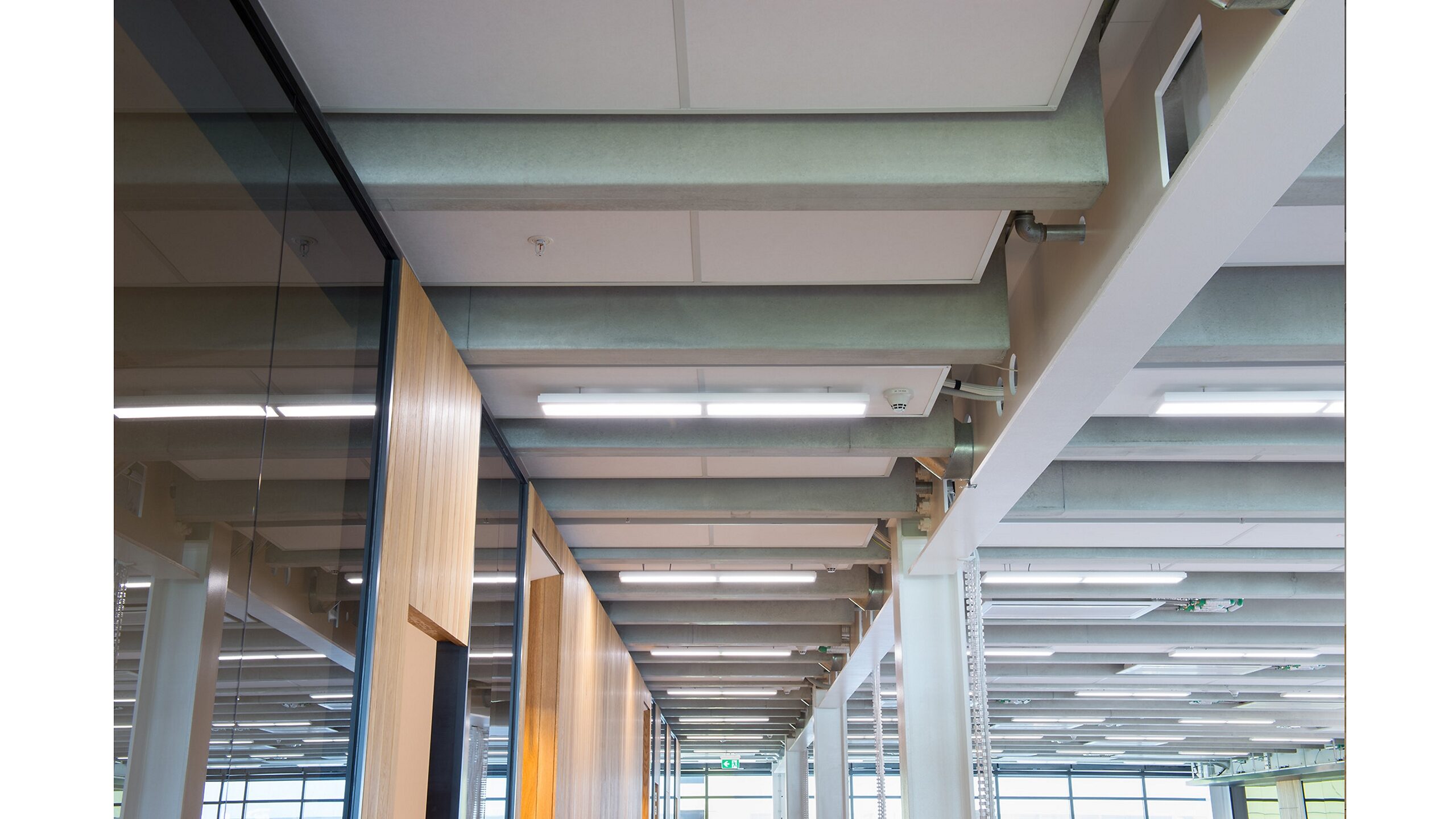

    easona lane neave triton duo 60 d

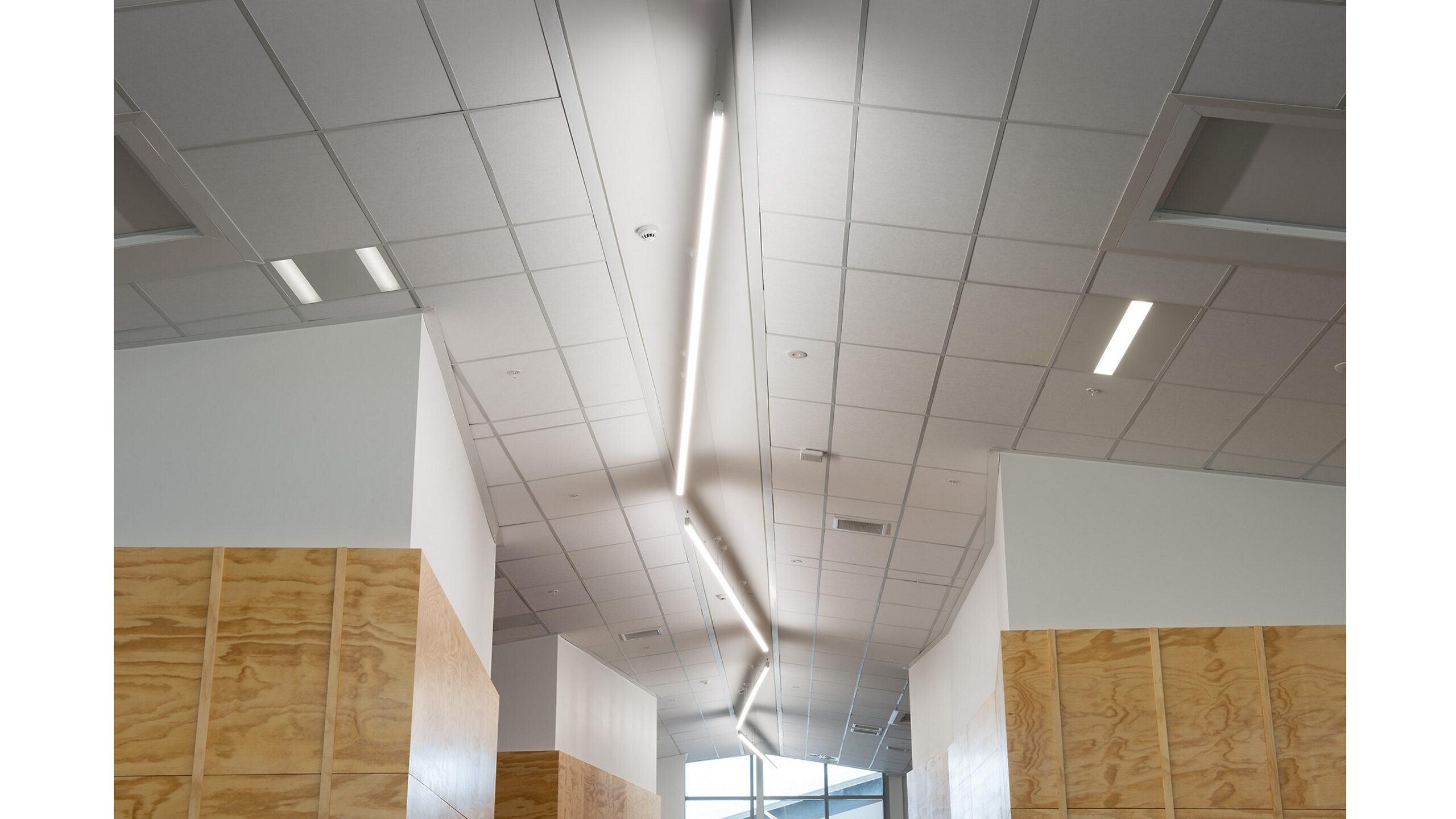

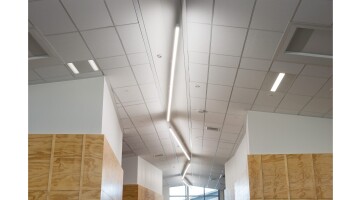

    easona haeata com. college triton 25 a

    Asona Triton 30HD™

    Triton 30HD™ is a made in NZ, high sound absorbing ceiling panel with HD core for attenuation of plenum noise and room to room noise. Triton panels are available in a wide range of sizes, decorative acoustic laminate finishes, colours, wood prints and perforated patterns for design freedom.

    Application:
    Education
    Commercial
    Recreation
    Form:
    Grid & Tile
    Fire Group:
    Group 1-S
    NRC Sound Absorption:
    0.95
    Class A Absorbers
    Acoustic CAC Rating:
    30
    Made in NZ
    Greentag
    Short Lead Time
    Colour / Finish
    Perforation
    Request Info/Spec Request Sample
    Description
    Specifications
    Downloads

    Triton 30HD™ is ideal for use in open plan offices, call centres, schools and general office ceilings.

    Very high sound absorption rating to control reverberation, NRC 0.95, ISO 11654 class A, αW 1.0.
    CAC 30 for attenuation of plenum & ceiling flanking noise.
    Fire Group 1-S
    Panels are available with temporary protective foil to keep them clean during installation. Ideal for service panels.
    Made in NZ, short lead times including replacement panels.
    Product stewardship Renew and Reuse program.
    Durability and dimensionally stable in high humidity.
    Broad range of Sonatex™ and Sonaris™ perforated acoustic laminate finishes for design freedom.
    Custom size border panels give perimeters a cleaner look.
    Packaging take back and reuse scheme available (NZ only).
    GreenTag Certified / Level A, low VOC, core contains 74% minimum.
    Light weight for seismic areas, easy to work and trim.
    Application:
    Education
    Commercial
    Recreation
    Form:
    Grid & Tile
    Fire Group:
    Group 1-S
    NRC Sound Absorption:
    0.95
    Class A Absorbers
    Acoustic CAC Rating:
    30

    Composition

    Manufactured from HD 120 kg/m³ bio-soluble glass wool core with Sonatex™ / Sonaris™ glass mat acoustic laminate finish. Suspension grid from coated galvanised steel. Made in NZ.

    Technical Datasheets

    Triton 30HD™
    Drawings

    Triton 30HD™ Direct Fix

    Triton 30HD™ Floating Island with Exposed Grid

    Triton 30HD™ Recessed Downlight

    Triton 30HD™ Acoustic Panel Cover Join Options

    Triton 30HD™ Flush Ceiling Join Details

    Triton 30HD™ Penetration Details & Services Cavity

    Triton 30HD™ Hip Junction Details

    Triton 30HD™ Raking Ceiling Long Section Details

    Triton 30HD™ Insulated Roof Lining
