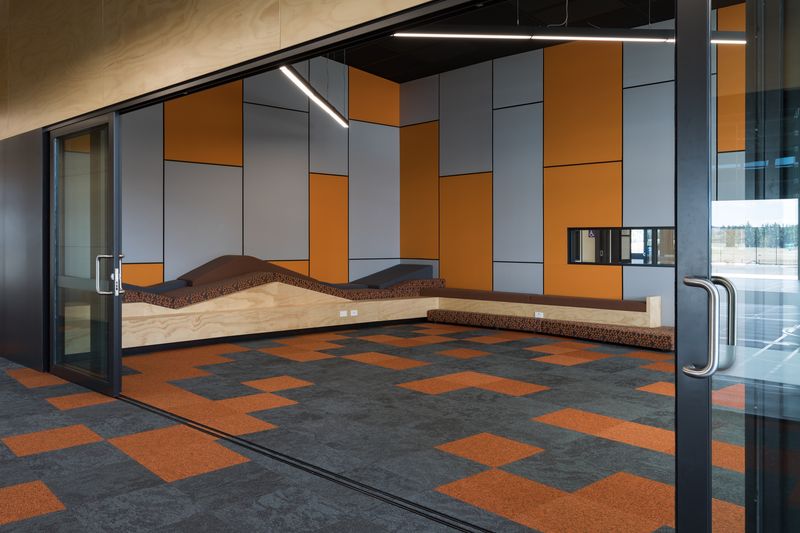

    Paerata School PID2920

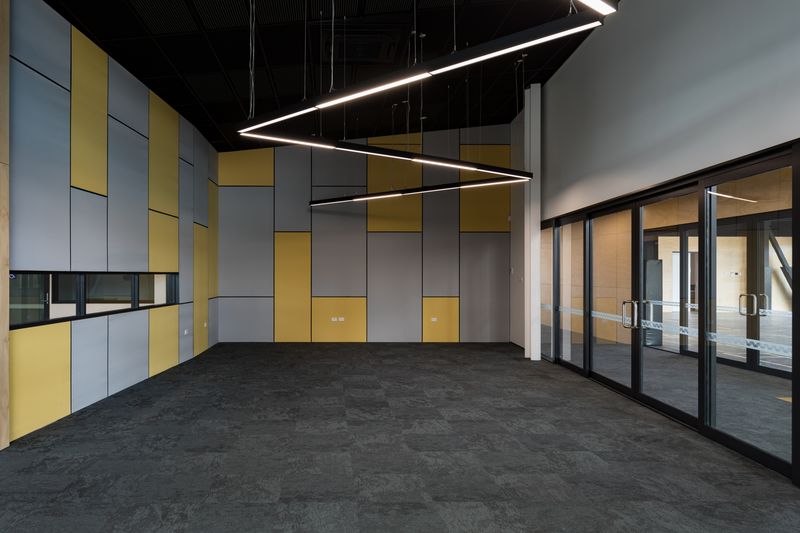

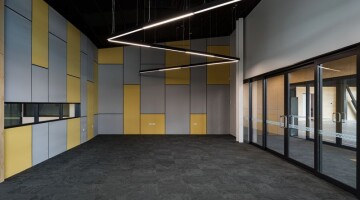

    Tamaoho School prev Belmont 4

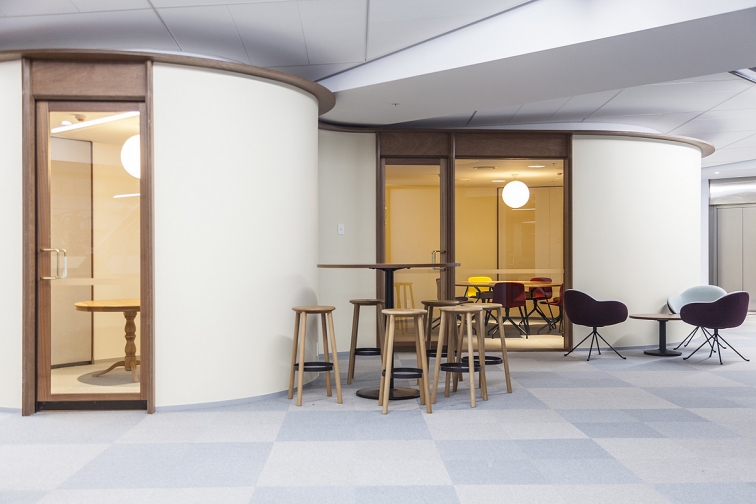

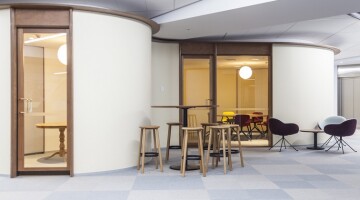

    Asona Quicklock genesis 001

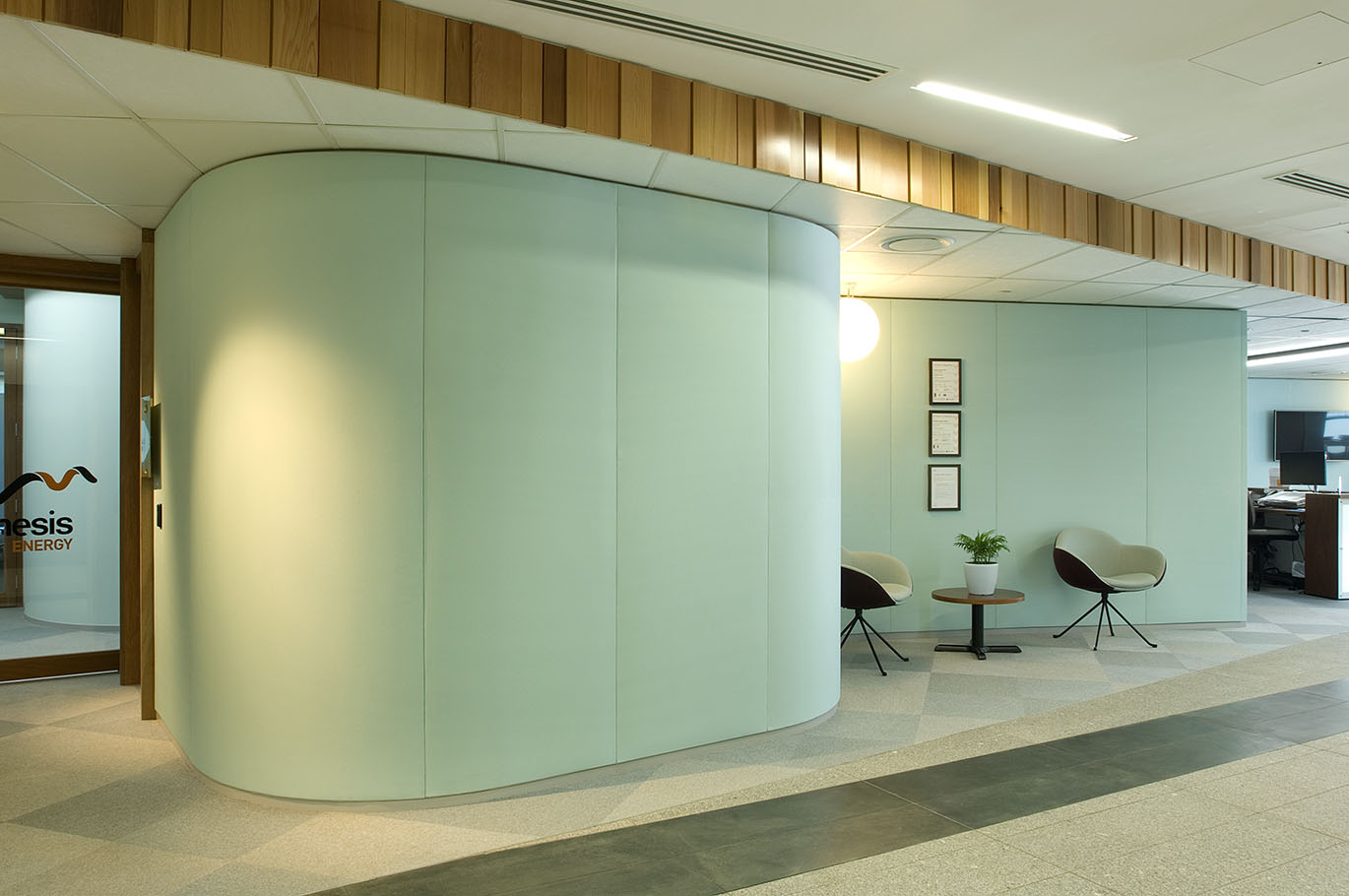

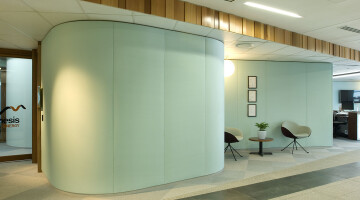

    Asona Quicklock GenesisPenrose 5 OriginalColour

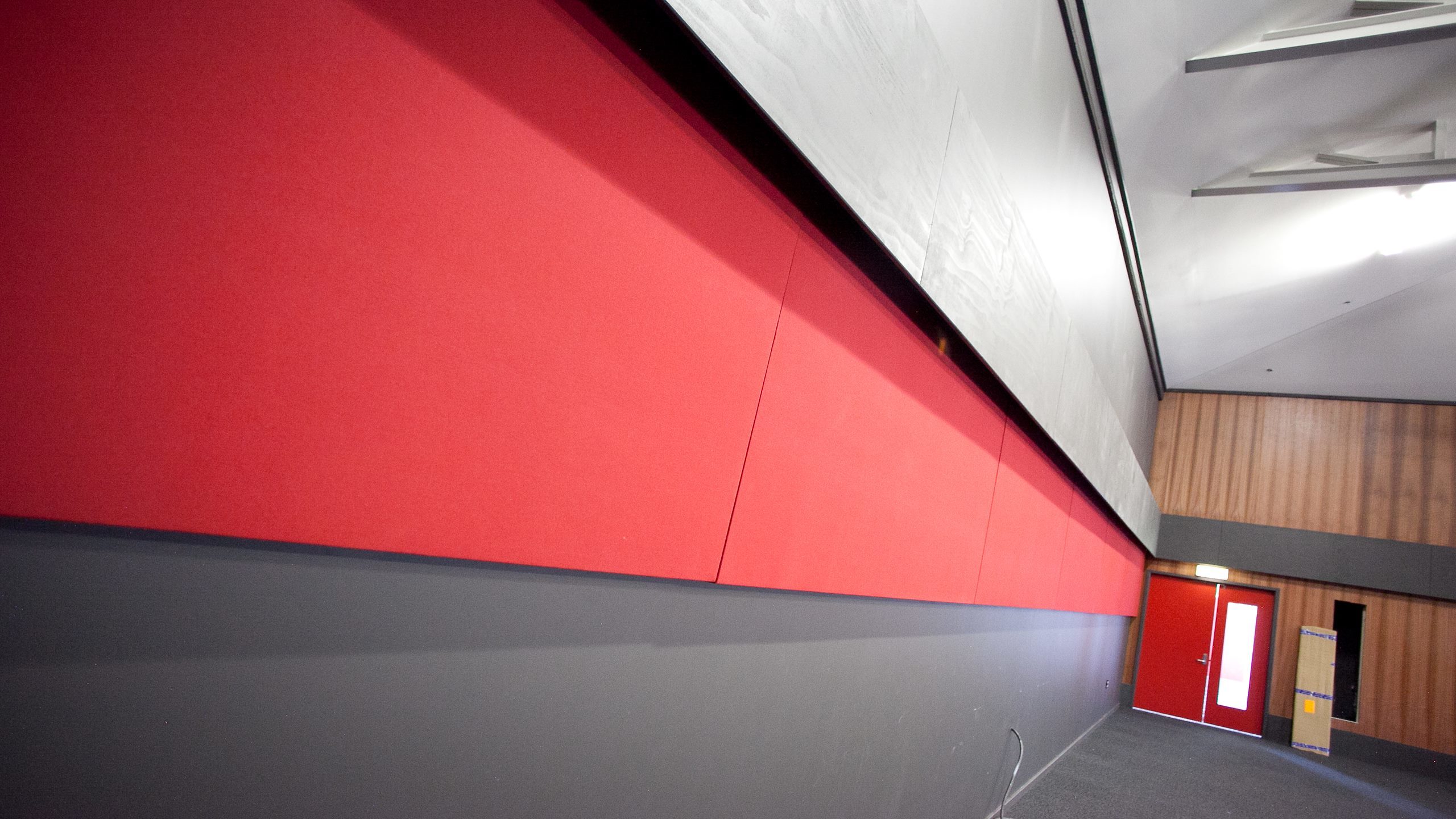

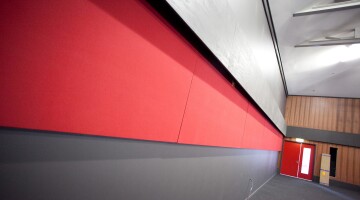

    ql 1 2560x1440

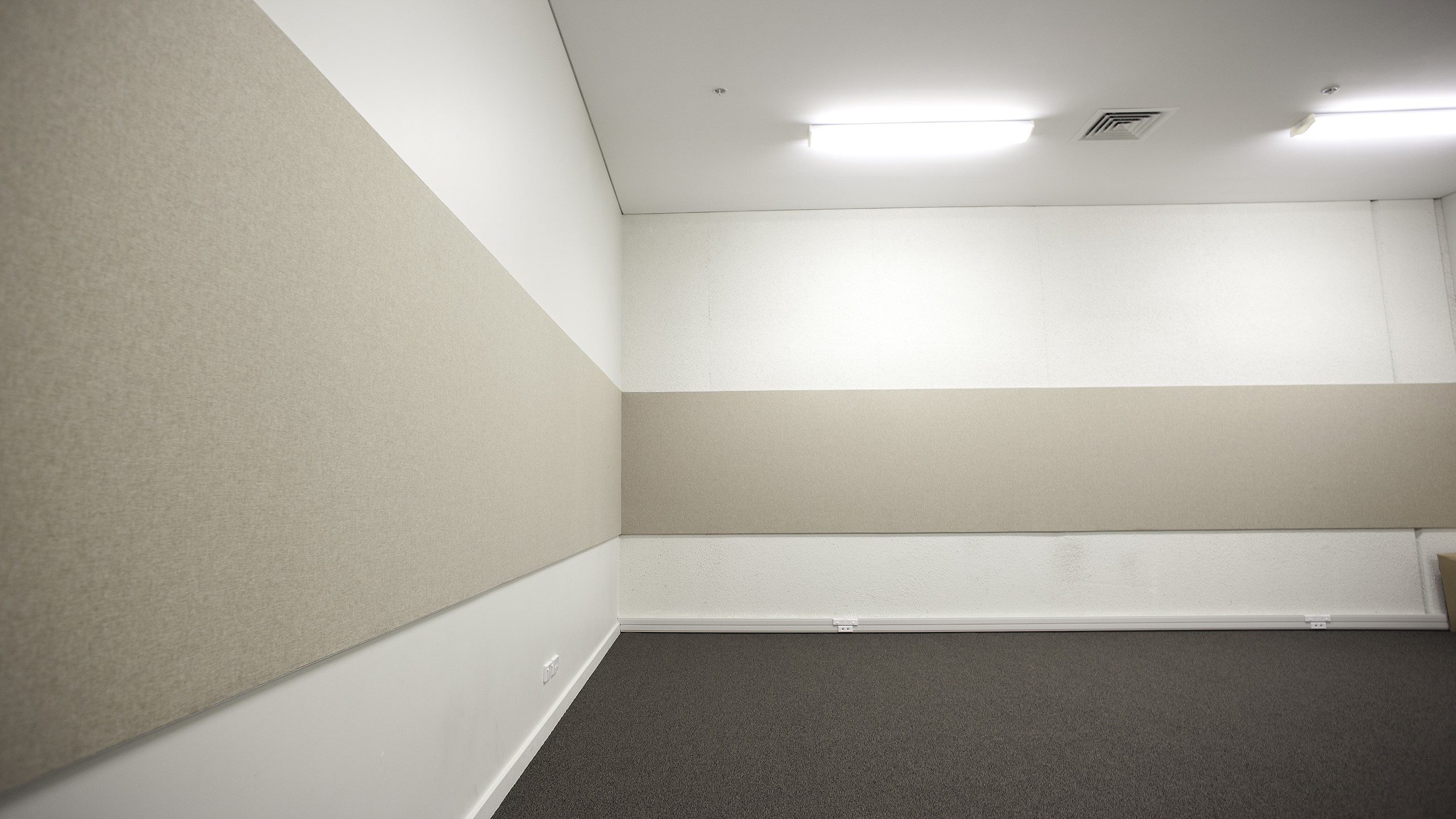

    ql3 2560x1440

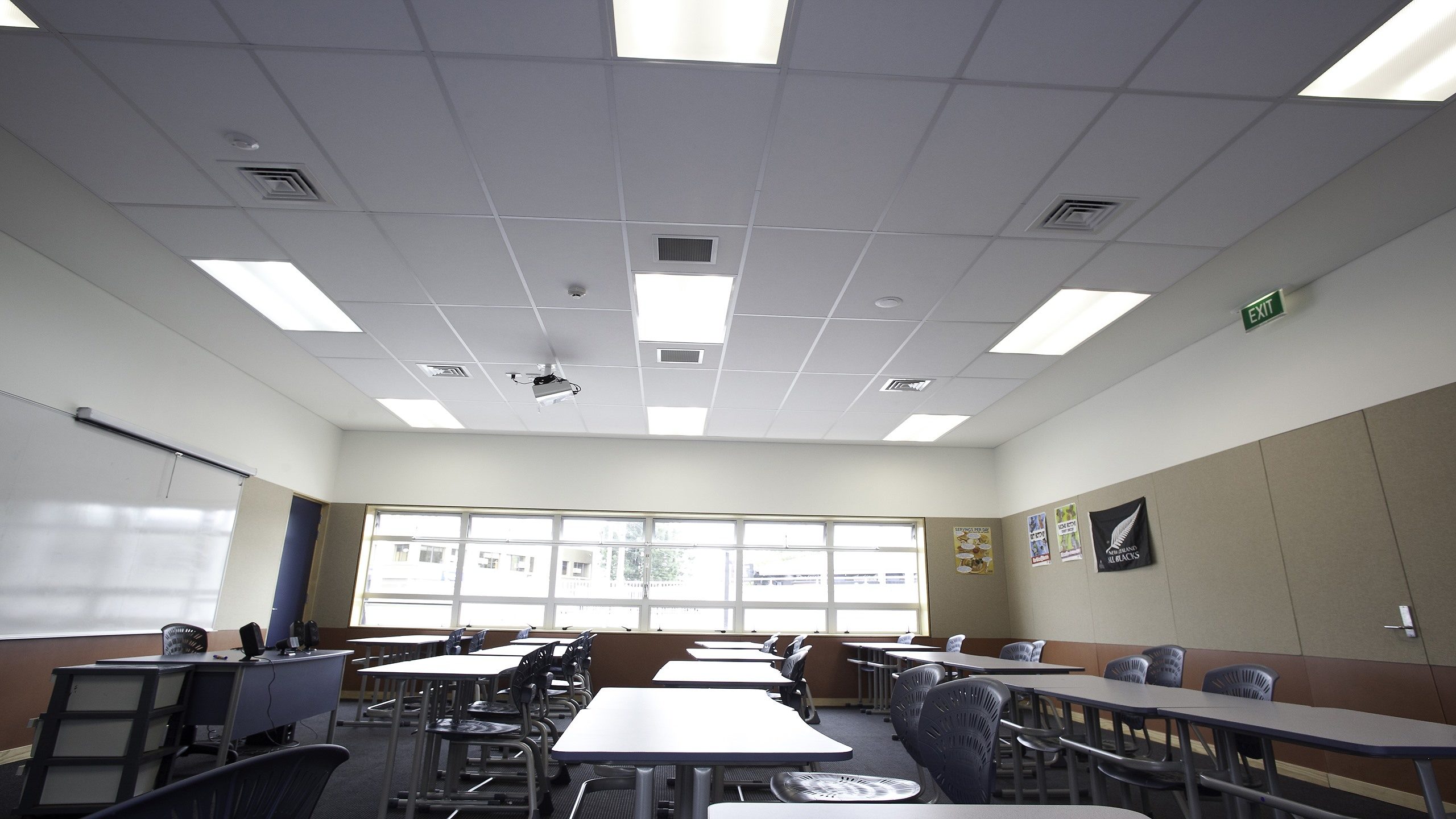

    ql4 2560x1440

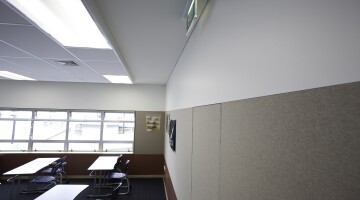

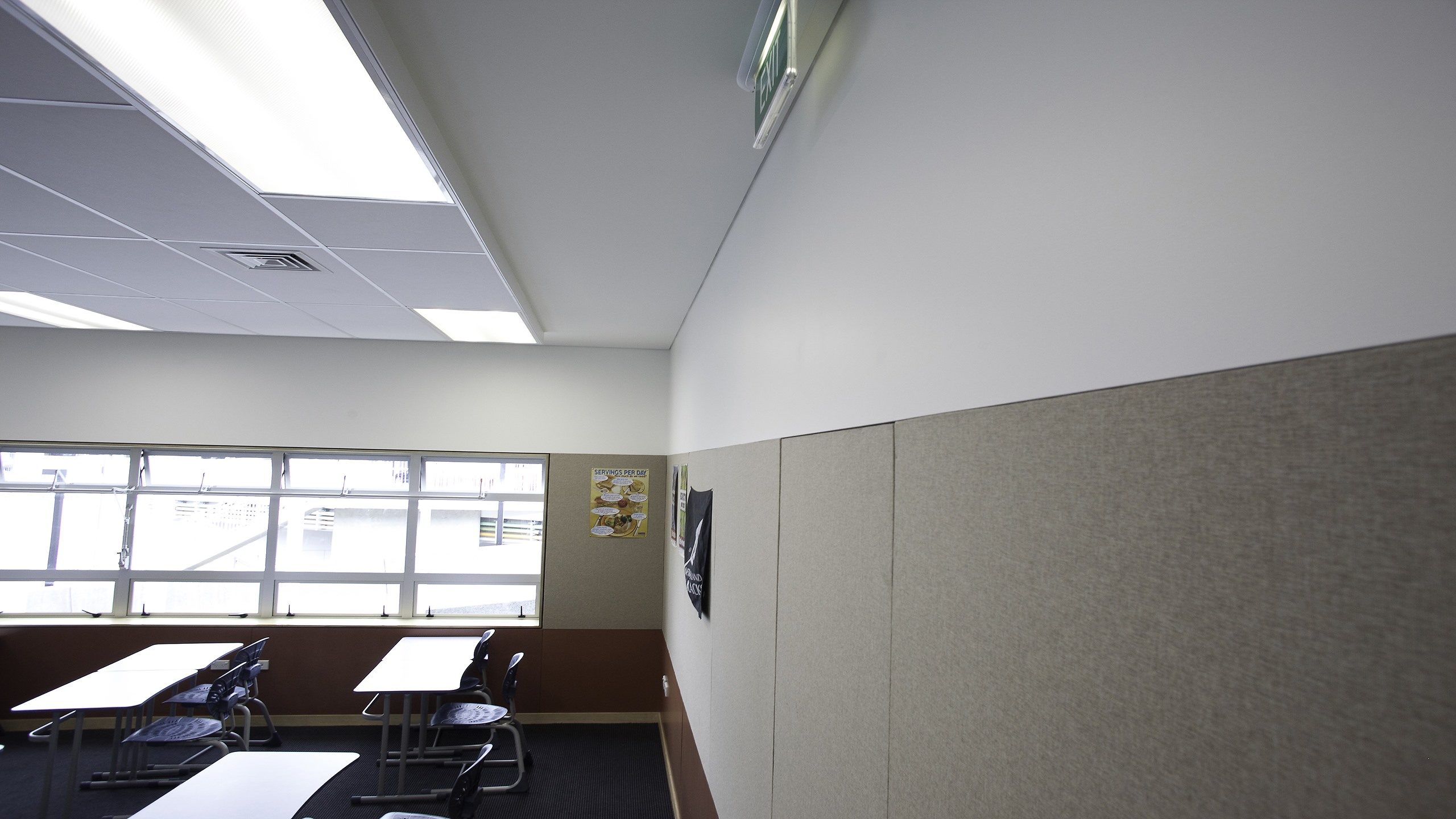

    ql 2560x1440 0

    Asona Triton Fabwall SB™

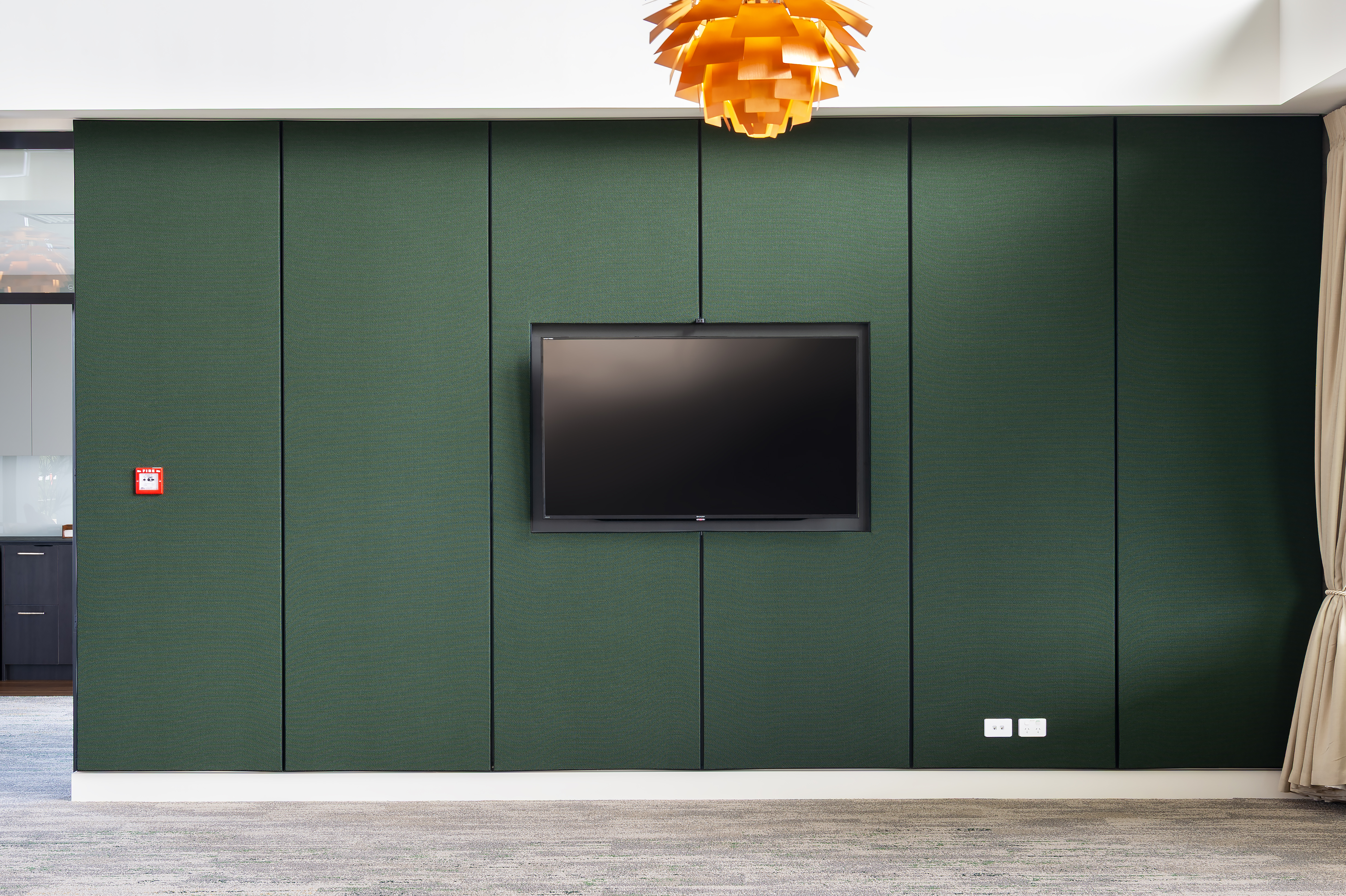

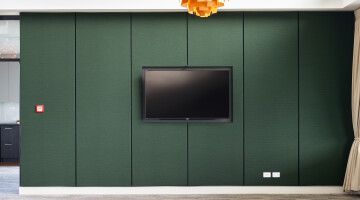

    Triton Fabwall SB™ is a site built stretched fabric system designed to provide a decorative acoustic finish to walls and ceilings. Fabric is friction fitted to a Quicklock track and mounted over 15, 25 or 50 mm thick Polyfon™ or Sonaboard™ sound absorbing panels to meet project acoustic requirements. A wide range of screen fabric finishes are available.

    Application:
    Commercial
    Education
    Hospitality
    Form:
    Panel
    Fire Group:
    Group 2-S
    NRC Sound Absorption:
    0.85
    Request Info/Spec Request Sample
    Description
    Specifications
    Downloads

    Triton Fabwall SB™ is specifically designed to meet the DQLS recommendation for 20% wall coverage at NRC 0.85 for classrooms, flexible learning spaces. Also ideal for meeting rooms, video conference rooms and corporate offices.

    Attractive range of fabric finishes in 160, 170 or 188 cmwidths which allows for large panel layouts, rail-roadhorizontal or vertical panel seams.
    Unique profiles for perfect fabric tension and grip, easyto replace damaged fabric.
    Installs fast to save construction time and labour costs.
    Ideal for concave or convex walls to eliminate sound reflection.
    Built on site by our registered installers.
    For acoustic control a 25 or 50 mm high sound absorbing panel is fitted under the fabric. NRC 0.60 - 1.00.
    CPA Board can span over level 1 plastered board joins saving costs.
    Long run panels up to 30 meters without joins.
    Two stage construction means early install in program with finishing fabric added just prior to hand over.
    Application:
    Commercial
    Education
    Hospitality
    Form:
    Panel
    Fire Group:
    Group 2-S
    NRC Sound Absorption:
    0.85

    Composition

    Fabric finish, Polyfon or Sonaboard sound absorber panel, Triton Fabwall SB QL15, QL25™ or QL50™ fabric track.

    Technical Datasheets

    Triton Fabwall SB™
    Drawings

    Triton Fabwall SB™ 50 Section Detail

    Triton Fabwall SB™ 50 Detail to Wall Mounted Furniture

    Triton Fabwall SB™ 50 Section Detail with Aluminium Trim

    Triton Fabwall SB™ 50 Mid Wall Join Detail

    Triton Fabwall SB™ 50 Penetration Detail
