    Norman Kirk Memorial Swimming Pool Centre

    Norman Kirk Memorial Swimming Pool Centre

    Ignite Architects specified Asona’s Triton Cloud Pool™ panel for the Norman Kirk Memorial Swimming Pool Centre.

    Related Products

    Asona Triton Pool Panel™

    Norman Kirk Memorial Swimming Pool Centre

    Ignite Architects specified Asona’s Triton Cloud Pool™ panel for the Norman Kirk Memorial Swimming Pool Centre. These purpose designed panels feature a 50 mm high sound absorbing glass fibre core with water proof foil membrane backing, concealed aluminium frame and wrapped in 2 ply mat white Sonatex™ acoustic facing with silicon water repellent finish. The 2400 x 1000 x 50 mm panels were fixed to timber substructure as ‘floating’ clouds with sufficient room to allow the free movement of air to prevent condensation forming. Architects: Ignite Architects Manufactured : Asona Limited

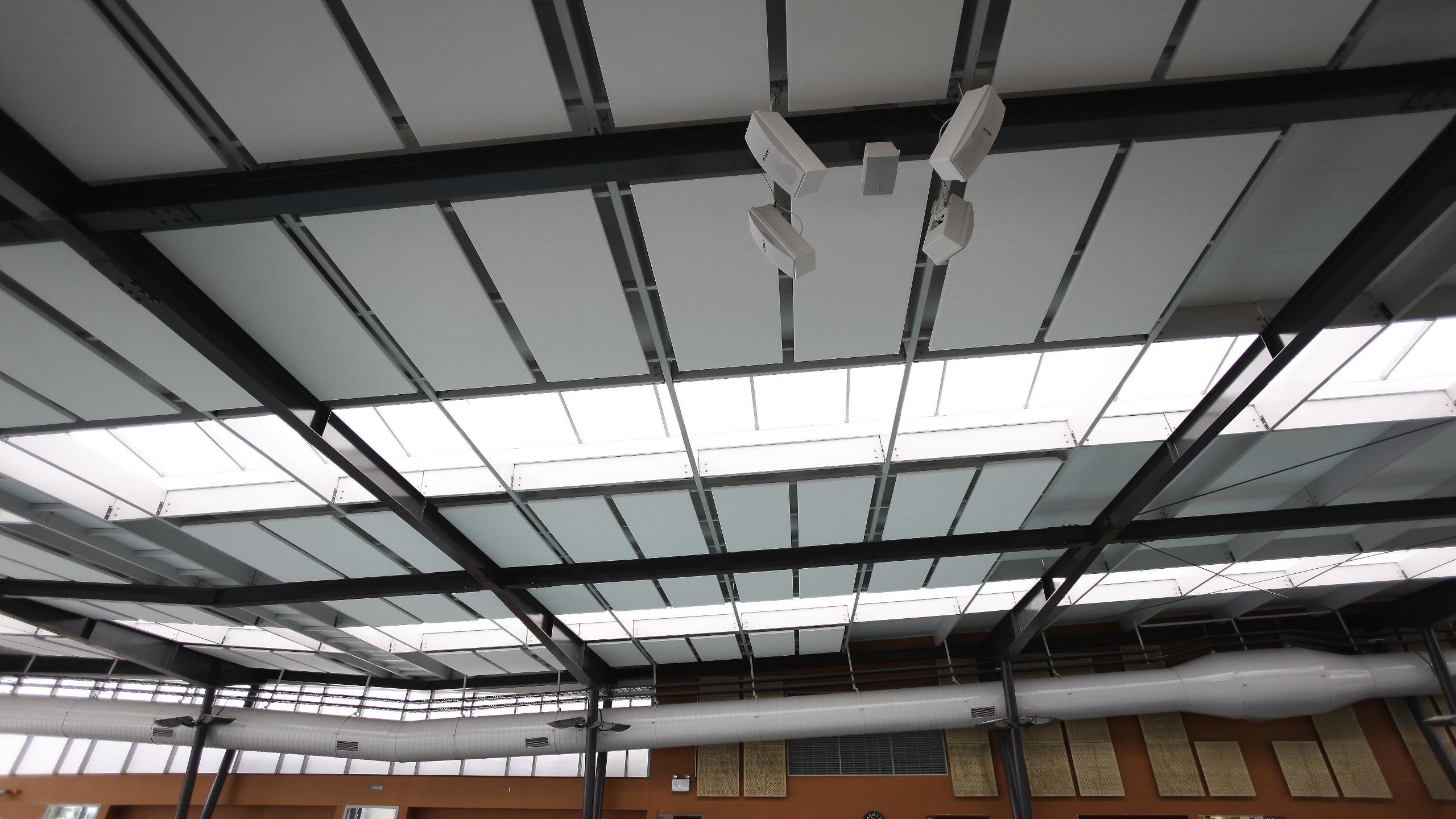

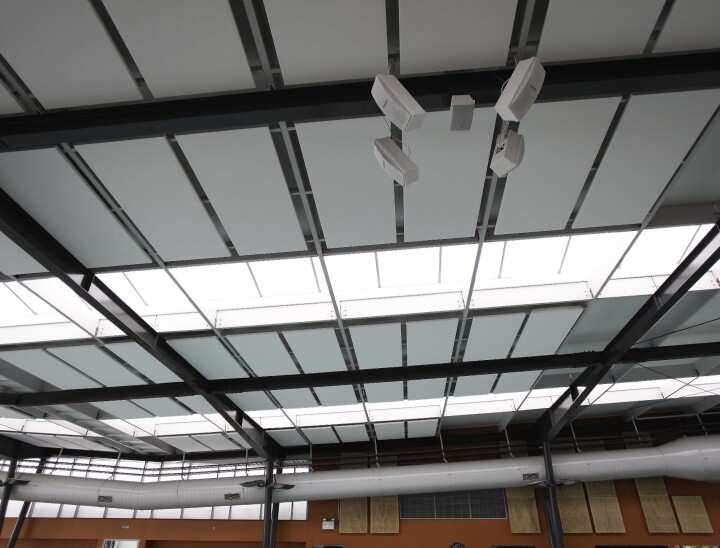

    normankirk 2560x1440 zoom icon

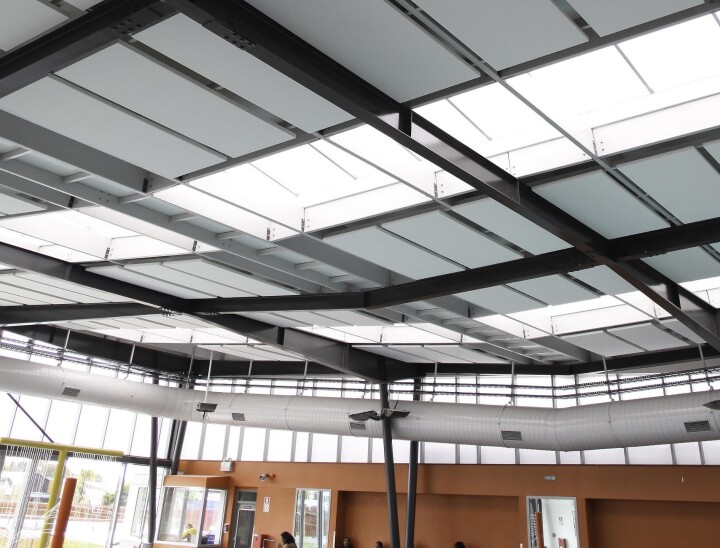

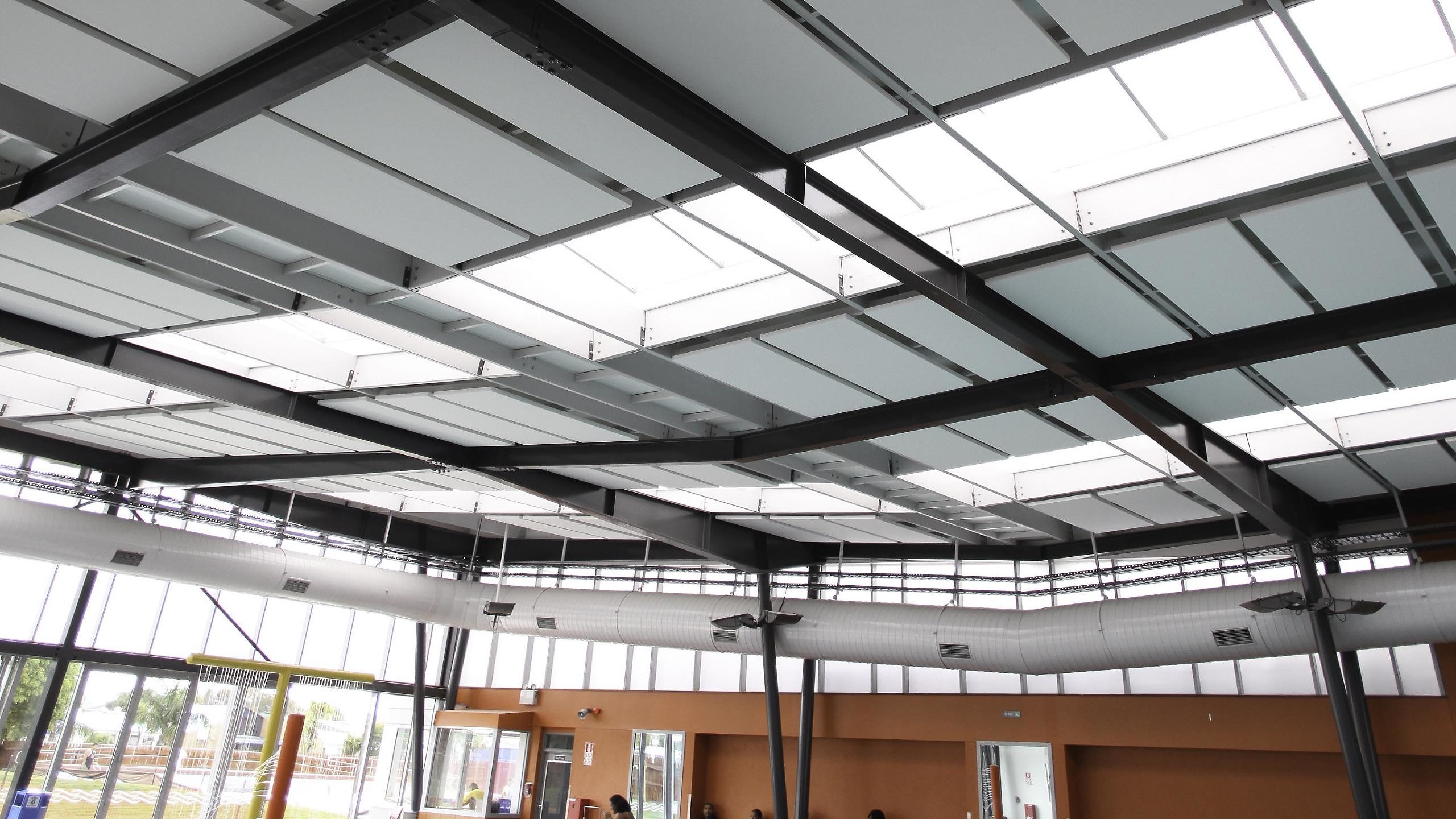

    norm1 2560x1440 zoom icon

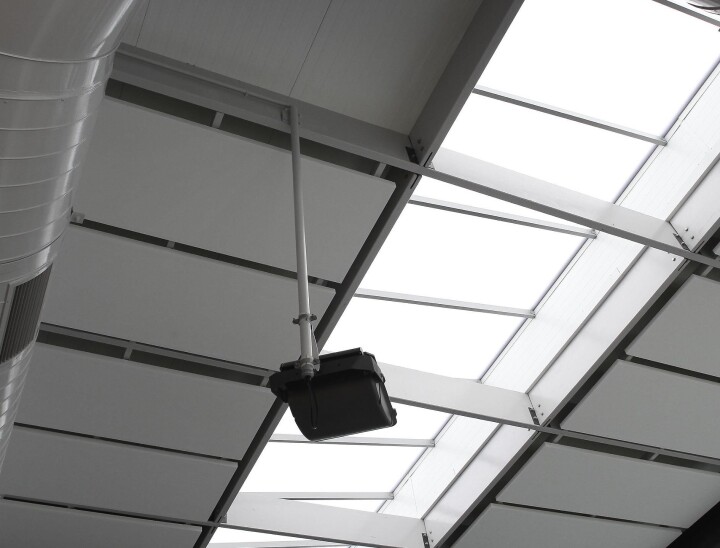

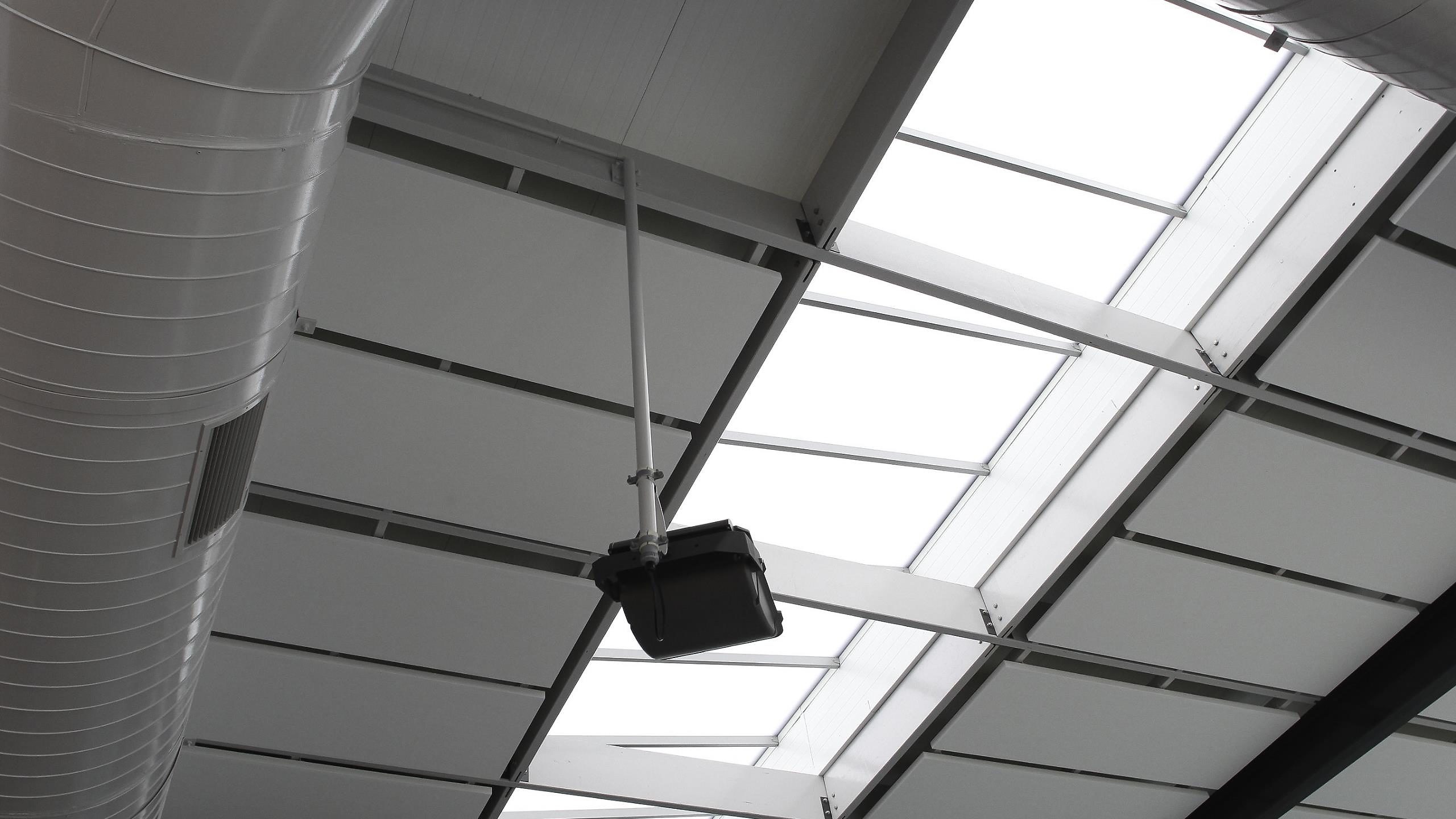

    norm3 2560x1440 zoom icon
    Asona Triton Pool Panel™

    This project uses Asona Triton Pool Panel™

    To learn more about this product and whether it’s right for your next project, explore the technical documents below

    Go to Product
    Technical Datasheets

    Triton Pool Panel™
    Installation Guides

    Triton Pool Panel™ Installation Manual
